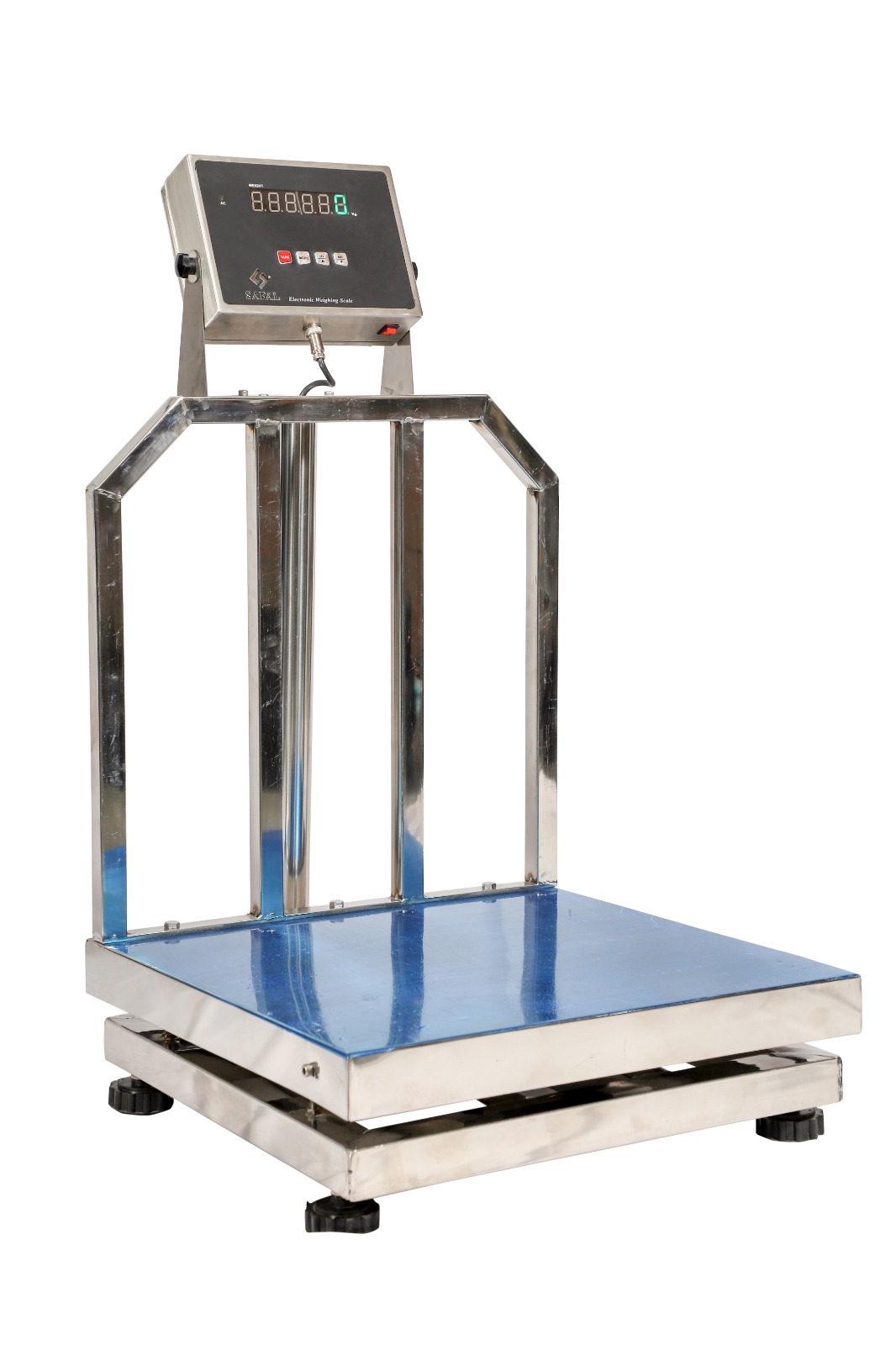

Features

• Bright LED display for easy viewing in most environments
• Adjustable levelling feet help optimize setup
• Lightweight design simplifies transport and portability
• Rugged construction stands up to industrial use
• External calibration allows for verification and adjustments with weights
• Sealed keypad protects against dirt and spills
• Wall-mount bracket for placing indicator on vertical surface
• Colour-coded keys facilitate quick recognition
• Rechargeable battery included for operation almost anywhere
• Heavy duty rubber feet ensure stability of unit
• Overload protection helps prevent damage to internal components
• Large,stainless steel platter, console stand and back grill
• Programmable auto power-off to save energy

General Specifications

• Weighing units: kg, g
• Calibration: External calibration
• Display housing: ABS Plastic
• Operating temperature: 0˚C to 45˚C
• Display: Green LED with 25.4 mm-Height Digit

Optional Reports

• Printer
• RS-232 Interface
• RS-485 Modbus RTU
• 4-20mA output
• Kg to letter conversion
• Check weighing
• Remote display (Pole/Wall Mounting)
• Tower lamps (Red, Yellow & Green)
• Two relay out-put for PLC.
• USB interface
• Remote display





Techanical Specification

Capacity (kg.)	Accuracy (g)	Platform Size (mm)	Framework	Platter
50/100/200	5/10	400X400	SS304	SS304
100/200/300	10/20/50	500X500	SS304	SS304
100/200/300/500	10/20/50/50	600X600	SS304	SS304
100/200/300/500	10/20/50/50	750X750	SS304	SS304
